IfcSplitAndMerge

IfcSplitAndMerge is a desktop application for splitting and merging IFC files.
Download: https://github.com/ifcquery/ifcsplitandmerge

Example use case:

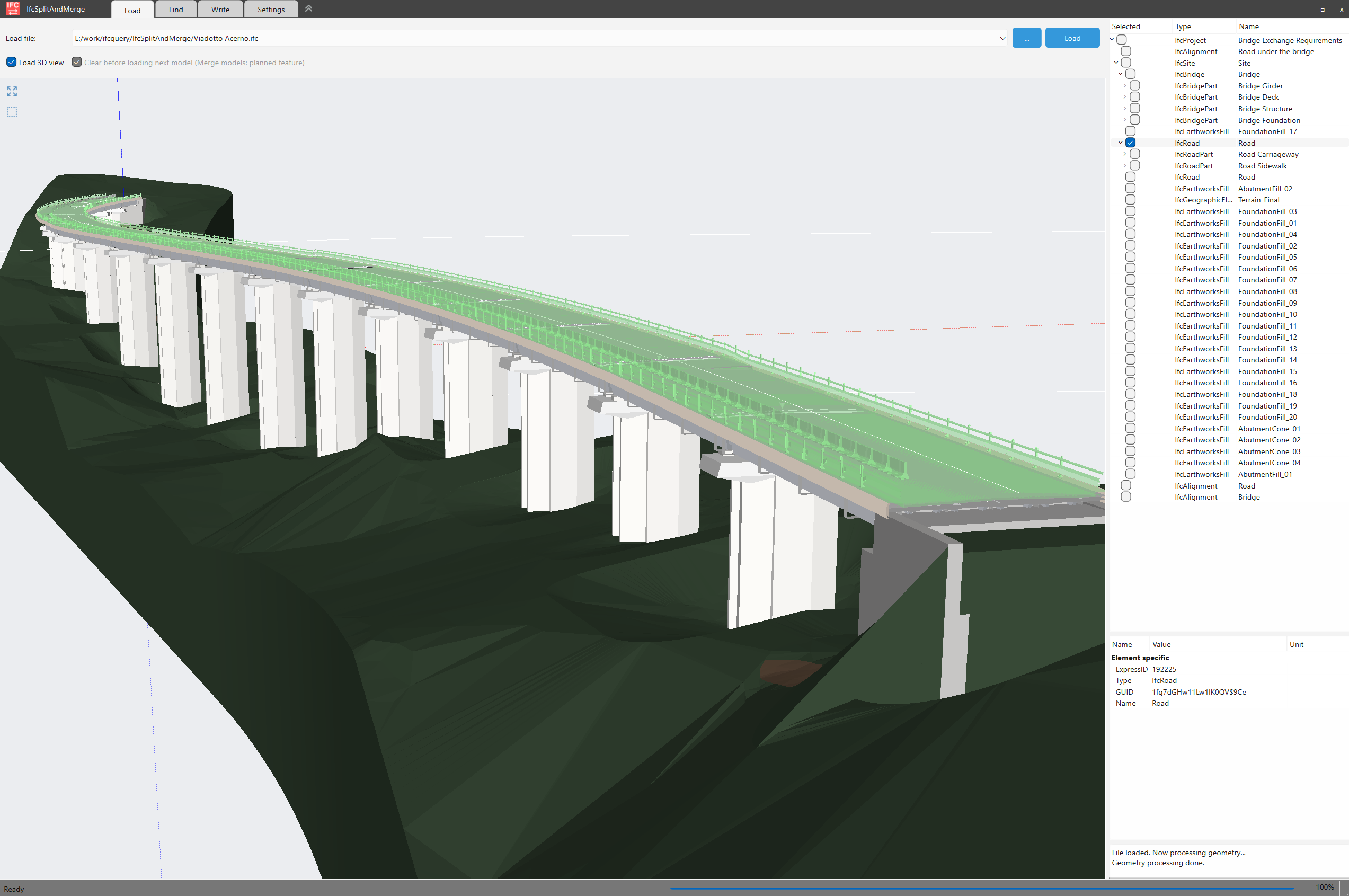

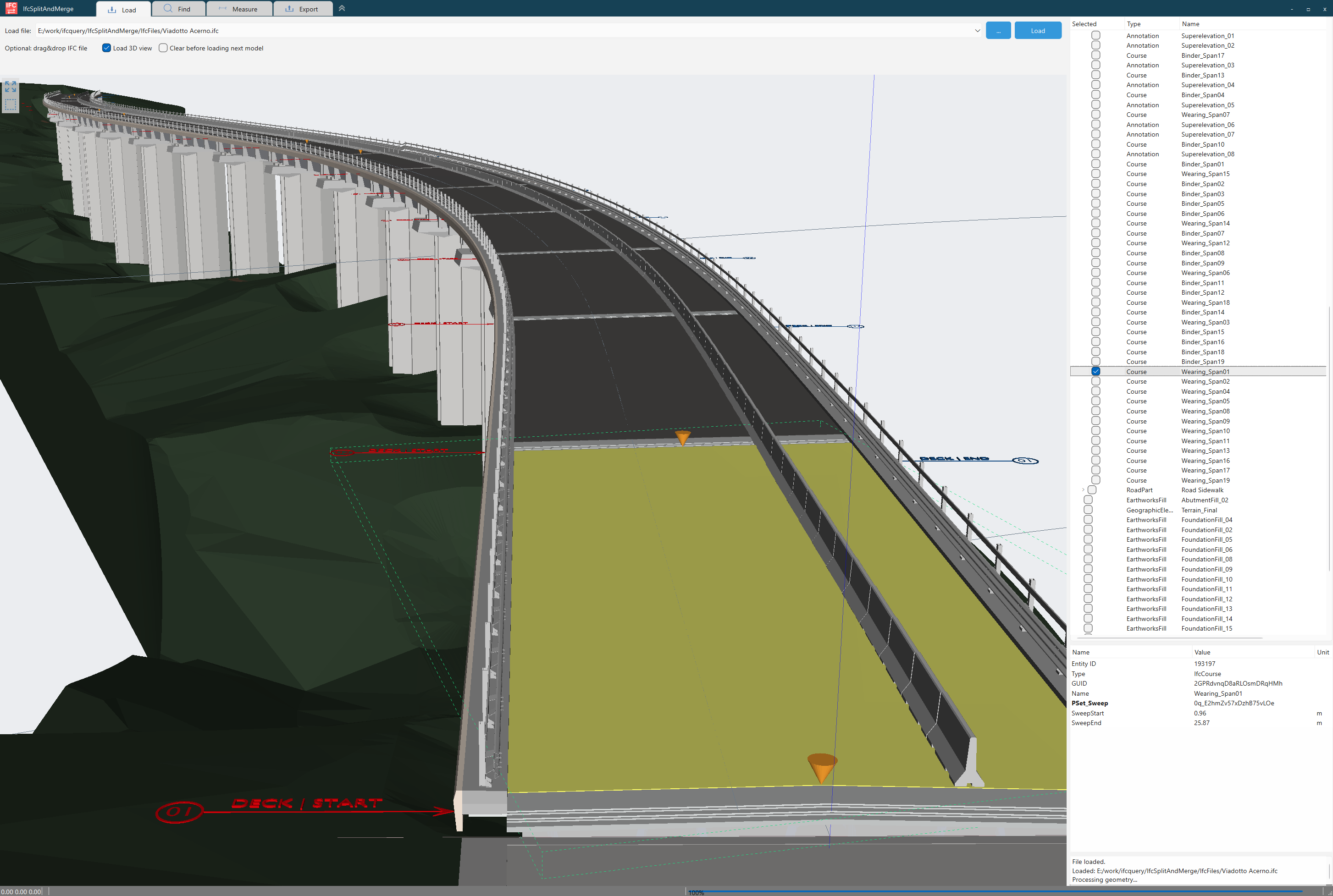

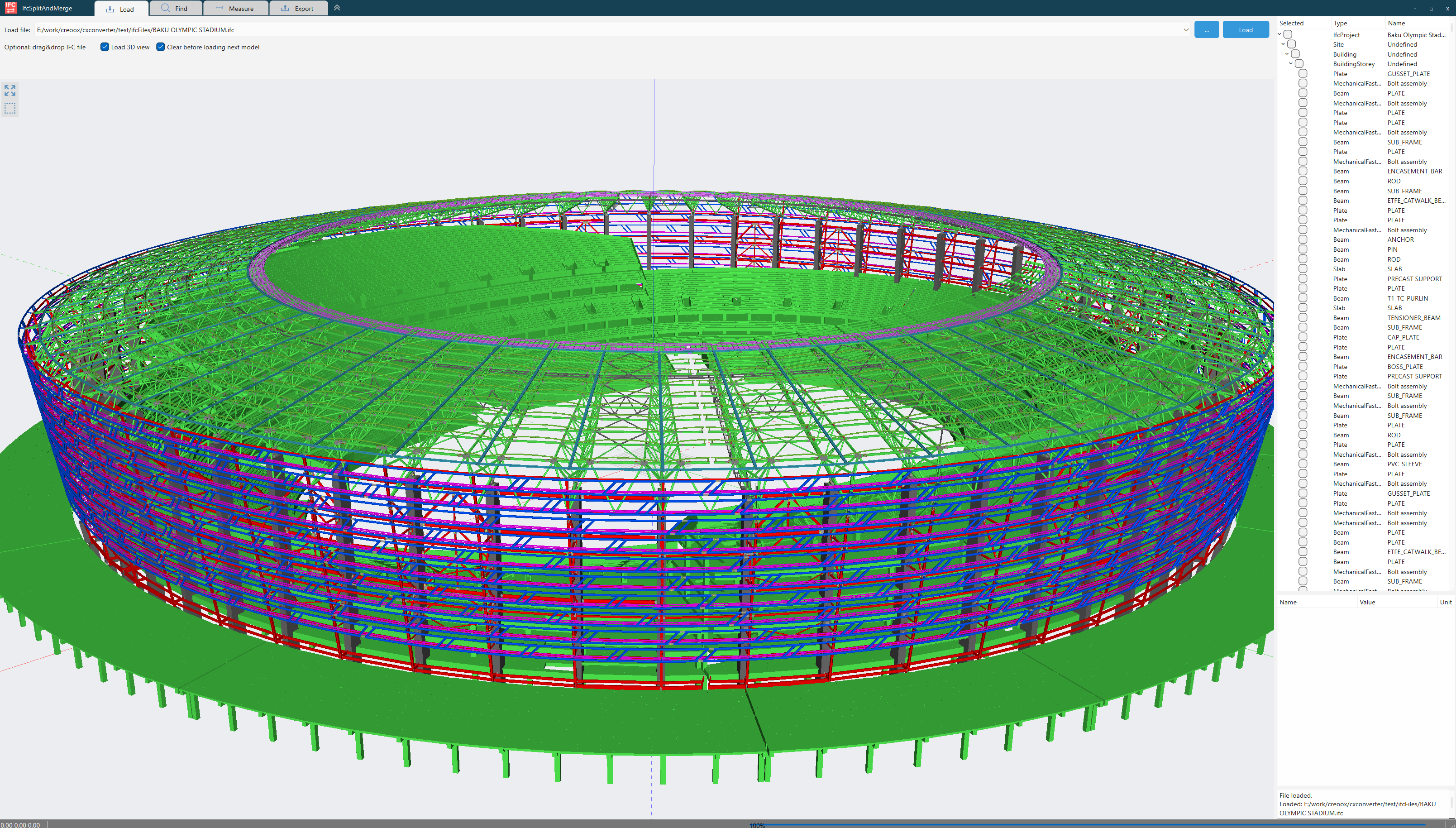

IfcSplitAndMerge application example

A 2 GByte IFC file loaded in IfcSplitAndMerge with high performance and robust geometry processing.

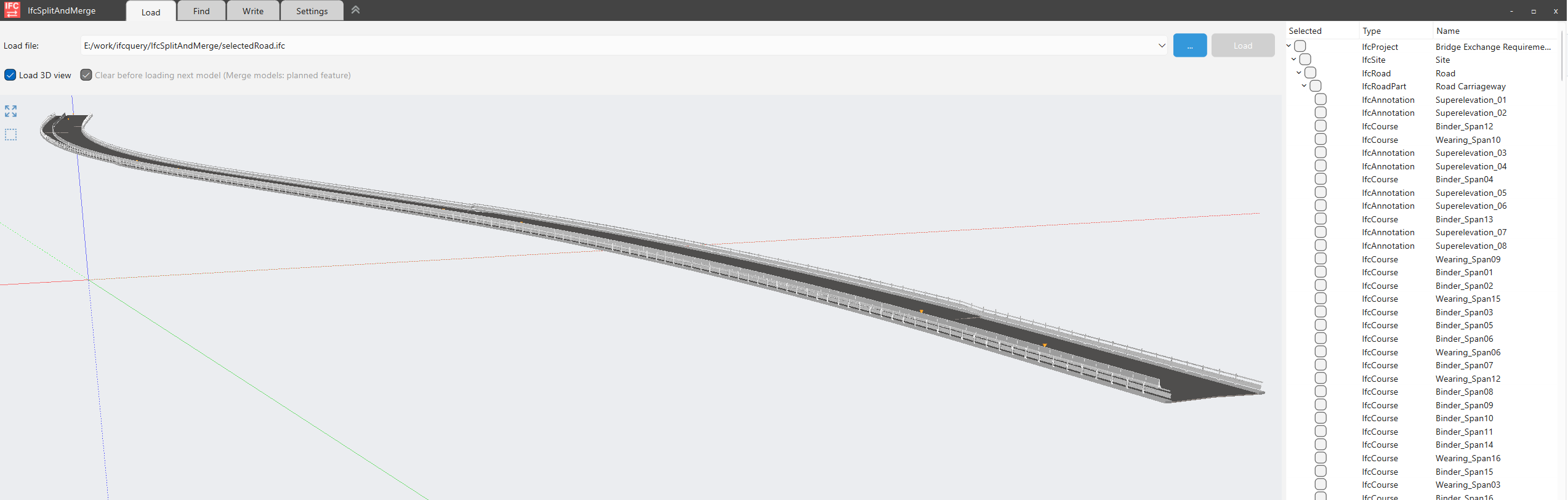

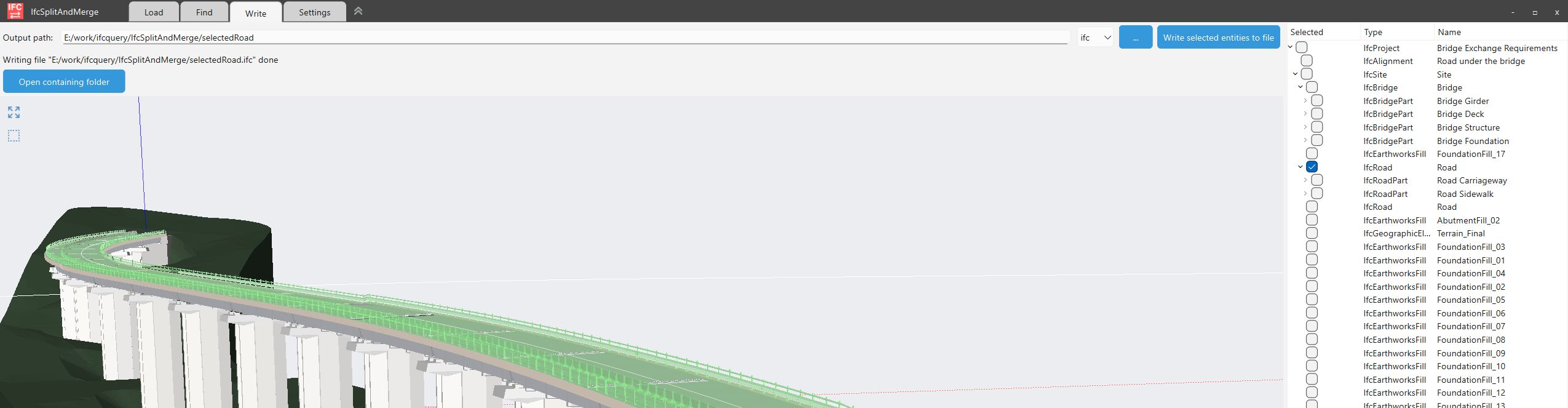

Elements can be selected in the 3D view, the tree view, or through text search in their attributes, and the selected elements can be exported to a new IFC file.
This enables efficient splitting of large IFC files—for example, by building storey, element type, or specific attributes and property set values.

IfcSplitAndMerge is built with Qt and OpenSceneGraph for high-performance rendering.
It uses the powerful open-source IFC geometry library web-ifc: https://github.com/ThatOpen/engine_web-ifc

Free Download

Download executables (ZIP):
https://github.com/ifcquery/IfcSplitAndMerge/releases

This application is free to use, but not open source.

Access to the source code

If you want to use IfcSplitAndMerge or parts of it as template for other applications:
